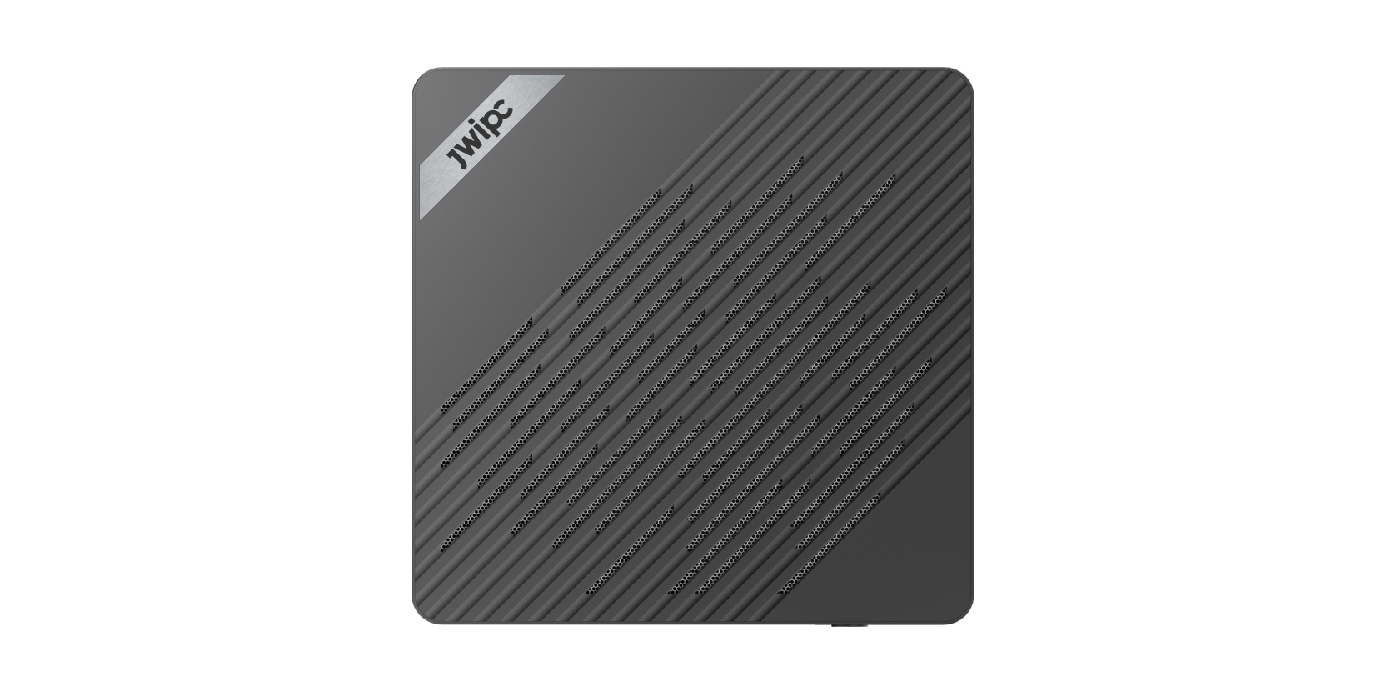

M124H

高性能AI PC

M124H AI MINI PC搭载Meteor Lake 架构的第一代英特尔酷睿 Ultra 处理器，多级 XPU 设计带来高达36TOPS的 AI 算力，可支持加载众多AI应用，实现了AI 计算在电脑本地运行。

留言咨询业务咨询

规格参数

CPU	CPU	Intel® Processor Ultra5 125H /Ultra7 165H
CPU	TDP	65 W
Display	Graphic card	Intel® Arc™ graphics
	Multi displays	Support Four displays
	Interface	1 x HDMI-Out 4K @60Hz 1 x DP-Out 4K @60Hz 1 x Type C-Out 4K @120Hz 1 x TBT4-Out 4K @120Hz
Network	Lan IC	2 x LAN IC
	Lan Interface	10/100/1000Mbps/2.5Gbps
	Lan Connector	2 x RJ45 Ports
	Wireless Type	M.2 Key E 2230 Module
	Wireless Interface	Mini PCIe WiFi/BT Module, ntel AX101/Intel AX210/Intel BE200NGW
	4G/5G	NO
I/O interface	USB	2 x USB3.2, 1 x Type-C，1 x TBT4
	Button	1 x PowerButton, 1 x Clear CMOS Key
	SIM CARD	NO
	AUDIO	1 x 3.5mm Combo Audio Jack,
	POWER	1 x Type-C
System	Memory	Dual SoDIMM DDR5 Max. 96 GB
	Storage	2* M.2 Key M 2280 Size PCIE4.0 SSD
	OS	Window11 / Linux
	WatchDog	Support
	Auto Power On	Yes
	RTC	Power on at specific time everyday
	Power Input	20v 2Pin 100W PD
	Dimension	139mm(L) x 138mm(W) x 38mm(H)
	Operating Temp.	-5~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~95% non-condensing
